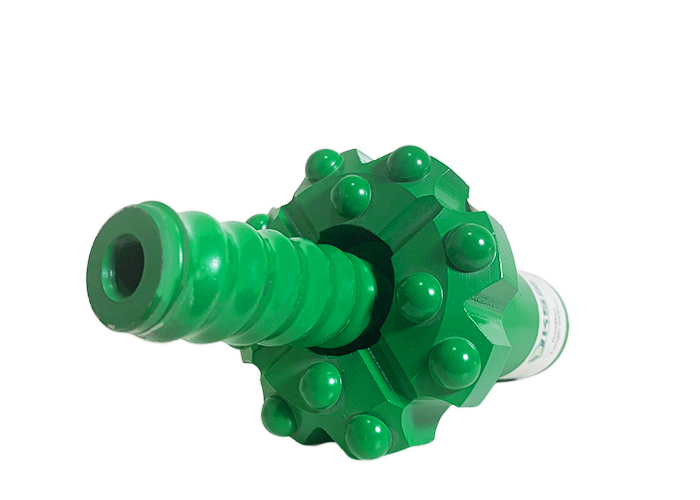

R25 6 Degree 3.5" Shank Rock Button Bits High Strength Alloy Steel Reaming

R25 6 Degree 3.5" Shank High Strength Alloy Steel Reaming Button Bit

Description

Reaming bits were widely used in quarrying or mining for blast hole drilling, with pilot adaptors, the drilling direction can be ensured and accurate. Pilot holes are drilled depth and then reamed out to a larger diameter in a second pass required when hole diameter exceeds the capabilities of the rock drill and drilling tools available.

• Widely used in drifting and tunneling
• R25 thread system

Color: Based on Customer requirements

Material: Tungsten carbide and high strength alloy steel

Processing: CNC milling and proprietary heat treatment process

Type: R25 Pilot Adapter 6°

Aplications
This type of bit is used for making large cut holes in drifting and tunneling. A smaller hole is first drilled and then reamed to the final size in combination with a pilot adapter. Large diameter service holes from level to level for drainage, electrical cable or pipe lines routinely used to ream cut holes for development rounds and for long hole blasting of drop raise

Specification

6 degree rock button bits

high strength rock button bits

alloy steel button bits rock drilling
