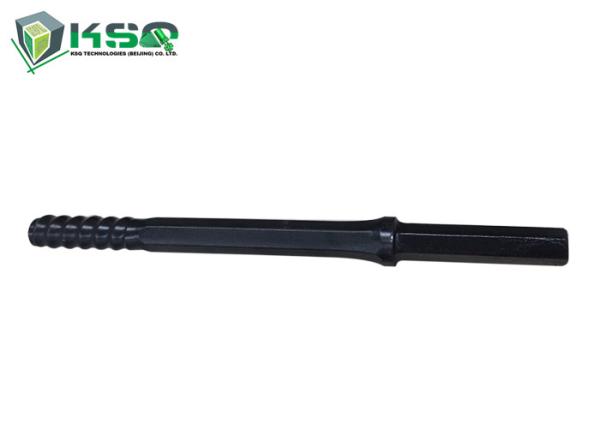

Shank 22 Mm X 108 Mm R25 Shank End Rod
Description:
Extension rod, other names are Extension drill steel, Extension drill rod, and Extension steel, M/F rod ( Speed rod ) , Produce Hexagonal and round cross sections, Hexagon rods are more rigid, heavier and transfer energy more efficiently, while increasing flushing. Round rods are generally lighter than hexagonal rods and are normally used in extension drilling applications. With the longer steel tending to be larger in diameter, conventional
Drifter rod, another names are tunneling steels, tunneling rod, drifting drill rod, has Round and hexagon rod available, most of drifting drill steel with drill Steel Hexagon is for tunneling and drifting drilling application. Hexagon rods are more rigid, heavier and transfer energy more efficiently,while increasing flushing.
Color: Based on Customer requirements
Material: Tungsten carbide and high strength alloy steel
Processing: CNC milling and proprietary heat treatment process
Type: R25 Shank End Rod Shank 22 mm x 108 mm
Applications
• Underground Mining
• Tunneling
Competitive Advantage
High strength chromium-molybdenum steel with high fatigue strength and excellent wear resistance
Specification
| Part Number | Product Code and Brief Description | Length (mm) | Length (ft/inch) | Diameter (mm) | Diameter (inch) | Weight (kg) |
| 4148300419 | DRH22-R25-610, R25 Shank End Rod, Shank 22 mm x 108 mm
| 610 | 2 | 22 | 6/7 | 2.6 |
| 4148300420 | DRH22-R25-760, R25 Shank End Rod, Shank 22 mm x 108 mm | 760 | 2 1/2 | 22 | 6/7 | 2.9 |
| 4148300421 | DRH22-R25-1000, R25 Shank End Rod, Shank 22 mm x 108 mm | 1000 | 3 2/7 | 22 | 6/7 | 3.7 |
| 4148300422 | DRH22-R25-1200, R25 Shank End Rod, Shank 22 mm x 108 mm | 1220 | 4 | 22 | 6/7 | 4.4 |
| 4148300423 | DRH22-R25-1830, R25 Shank End Rod, Shank 22 mm x 108 mm | 1830 | 6 | 22 | 6/7 | 6.3 |
| 4148300424 | DRH22-R25-2435, R25 Shank End Rod, Shank 22 mm x 108 mm | 2435 | 8 | 22 | 6/7 | 8.1 |
| 4148300425 | DRH22-R25-3200, R25 Shank End Rod, Shank 22 mm x 108 mm | 3200 | 10 1/2 | 22 | 6/7 | 10.6 |
| 4148300426 | DRH22-R25-3600, R25 Shank End Rod, Shank 22 mm x 108 mm | 3600 | 11 4/5 | 22 | 6/7 | 12.0 |
Product Tags:
|
|

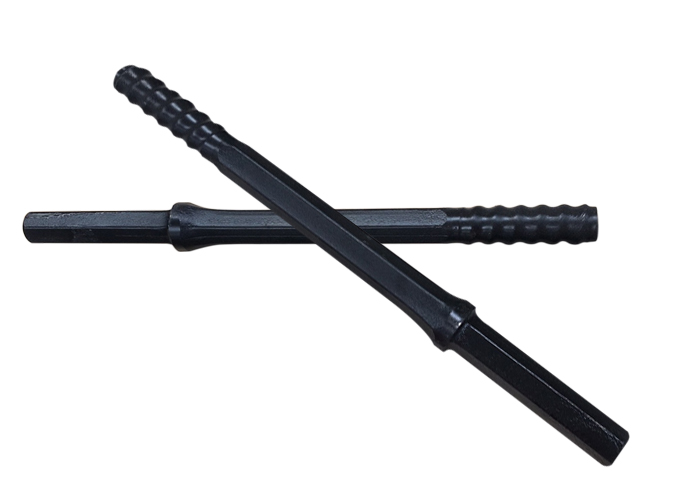

Shank 22 Mm X 108 Mm R25 Shank End Rod Images
|
