H25 22mm 82mm Hex Shank Drill Rod

Product Categories

KSQ Technologies (Beijing) Co. Ltd

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

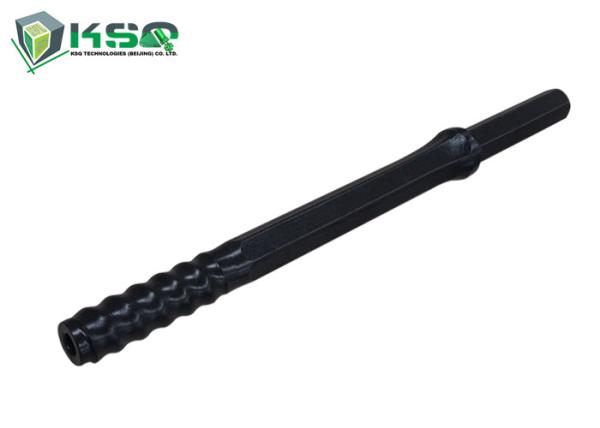

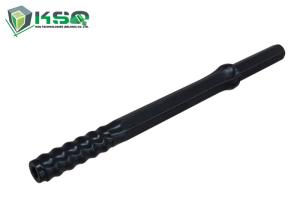

H25 22mm 82mm Hex Shank Drill Rod

Name: H25 22mm 82mm Hex Shank Drill Rod
Brand: MIROC
Price: 1 USD

China H25 22mm 82mm Hex Shank Drill Rod wholesale

Place of Origin : China

Brand Name : MIROC

Model Number : H25 22mm Shank Drill Rod

MOQ : 50

Packaging Details : Wooden Plate

Delivery Time : 25 days

Payment Terms : T/T or L/C

Supply Ability : 20000 pieces per month

Price : negotiation

Certification : ISO

Type : Drill Pipe

Processing Type : heat treatment

Application : ore mining, coal mining, well drilling

Color : Original

Feature : Durable

Length : customer request

Contact Now

H25 22mm 82mm Hex Shank Drill Rod

Description
Drill rod using H25 thread system. Suited for drills capable of receiving Hex 22 mm x 82 mm shank.

• H25 thread system
• Suitable for small hole range

Color: Based on Customer requirements

Material: Tungsten carbide and high strength alloy steel

Processing: CNC milling and proprietary heat treatment process

Type: H25 Hex Drill Rod

Applications

Drill rod is mainly used in the drilling blasting hole, guardrail hole, mountain reinforcment, anchoring and other engineering holes in mines, quarris, high ways, railways and so on.

Competitive Advantage
High strength chromium-molybdenum steel with high fatigue strength and excellent wear resistance

Specification

Part Number	Product Code and Brief Description	Length (mm)	Length (ft/inch)	Diameter (mm)	Diameter (inch)	Weight (kg)
4148300342	DR22-H25-305-1, Hex 22 mm Drill Rod, Shank 82 mm	305	1	22	6/7	1.2
4148300343	DR22-H25-455-1, Hex 22 mm Drill Rod, Shank 82 mm	455	1 1/2	22	6/7	1.67
4148300344	DR22-H25-610-1, Hex 22 mm Drill Rod, Shank 82 mm	610	2	22	6/7	2.15
4148300345	DR22-H25-762-1, Hex 22 mm Drill Rod, Shank 82 mm	762	2 1/2	22	6/7	2.62
4148300346	DR22-H25-915-1, Hex 22 mm Drill Rod, Shank 82 mm	915	3	22	6/7	3.1
4148300347	DR22-H25-1220-1, Hex 22 mm Drill Rod, Shank 82 mm	1220	4	22	6/7	4.04
4148300348	DR22-H25-1525-1, Hex 22 mm Drill Rod, Shank 82 mm	1525	5	22	6/7	4.99
4148300349	DR22-H25-1830-1, Hex 22 mm Drill Rod, Shank 82 mm	1830	6	22	6/7	5.93
4148300350	DR22-H25-2440-1, Hex 22 mm Drill Rod, Shank 82 mm	2440	8	22	6/7	7.82
4148300351	DR22-H25-3050-1, Hex 22 mm Drill Rod, Shank 82 mm	3050	10	22	6/7	9.71
4148300352	DR22-H25-3660-1, Hex 22 mm Drill Rod, Shank 82 mm	3660	12	22	6/7	11.6
4148300353	DR22-H25-4270-1, Hex 22 mm Drill Rod, Shank 82 mm	4270	14	22	6/7	13.49
