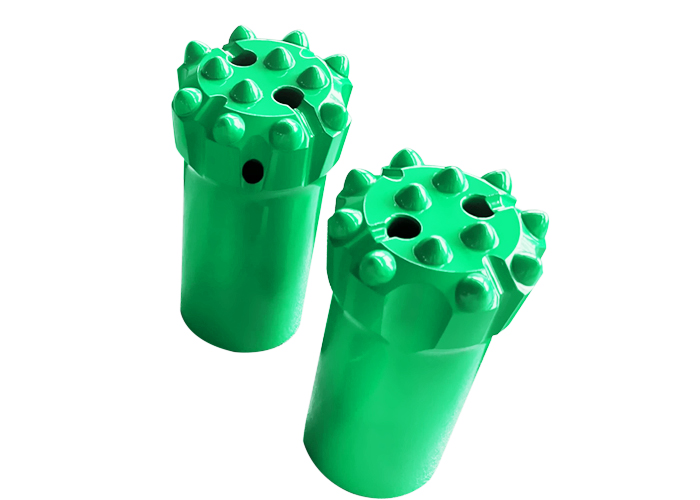

12 Buttons Flat Face Diameter 76mm T45 Drill Bit For Top Hammer Drilling

Name: 12 Buttons Flat Face Diameter 76mm T45 Drill Bit For Top Hammer Drilling
Brand: MIROC
Price: 1 USD

Brand Name : MIROC

Model Number : T45 76mm Thread Button Bit

Certification : ISO

Place of Origin : China

MOQ : 1

Price : Nogotiation

Supply Ability : 20000pcs per month

Delivery Time : 15-20 days

Packaging Details : customised

Type : Drill Bit

Processing Type : Forging

Diameter : 70mm to 102mm

Material : Tungsten Carbide and Steel

Button Type : Spherical, Ballistic, Conical

Corlor : Customised

Button Numbers : 10 to 14 buttons

Face Type : Flat, Drop Center

Flushing Hole : 2 to 5 holes

Product Name : T45 Threaded Button Bit

Contact Now

12 Buttons Flat Face Diameter 76mm T45 Drill Bit For Top Hammer Drilling

KSQ With the top quality of alloy steels and the best carbides made in China, we produce all threaded button bits by hot press technology.

A comprehensive range of various button bits shown as below:

Thread sizes: R25, R28, R32, R35, R38, T38, T45, T51, ST58, ST60, GT60;
Head diameters: 33mm ~ 152mm;
Face designs; flat face, drop center, uni-face;
Skirt designs: normal, retract, straigh retract

12 Buttons Flat Face Diameter 76mm T45 Drill Bit For Top Hammer Drilling

Specification:

T45 Threaded Button Bit	Bit Dia.		Buttons and Size (mm)		Flushing Hole		Weight	Product Code
T45 Threaded Button Bit	mm	inch	Front	Gauge	Front	Side	kg	Product Code
Button Bit, Drop Center Spherical Buttons, B10XX	70	2 3/4	3x11,1x19	6x11	3	-	2.2	B1070-T45-S
Button Bit, Drop Center Spherical Buttons, B10XX	76	3	3x11,1x11	6x13	3	-	2.4	B1076-T45-S
Button Bit, Drop Center Spherical Buttons, B11XX	89	3 1/2	3x11, 2x11	6x13	3	1	4.1	B1189-T45-S
Button Bit, Drop Center Spherical Buttons, B11XX	102	4	3x13, 2x13	6x14	3	1	4.5	B11102-T45-S
Button Bit Spherical Buttons, B12XX	70	2 3/4	4x11	8x11	2	-	2.3	B1270-T45-S
	76	3	4x11	8x11	2	-	2.6	B1276-T45-S
	89	3 1/2	4x13	8x13	2	-	4.6	B1289-T45-S
Button Bit, Drop Center Spherical Buttons, B13XX	70	2 3/4	4x10, 1x10	8x11	4	-	2.2	B1370-T45-S
	76	3	4x11, 1x11	8x12	4	-	2.6	B1376-T45-S
	89	3 1/2	4x11, 1x11	8x12	4	-	4.6	B1389-T45-S-1
	89	3 1/2	4x13, 1x13	8x13	4	-	4.6	B1389-T45-S-2
	102	4	4x13, 1x13	8x14	4	-	4.5	B13102-T45-S
Button Bit Spherical Buttons, B14XX	89	3 1/2	6x11	8x12	2	-	4.6	B1489-T45-S
Button Bit Spherical Buttons, B14XX	102	4	6x13	8x16	2	1	5	B14102-T45-S-1
Button Bit, Drop Center Spherical Buttons, B14XX	102	4	4x13, 2x13	8x13	4	1	4.5	B14102-T45-S-2
Button Bit, Drop Center Ballistic Buttons, B10XX	70	2 3/4	3x11, 1x19	6x11	3	-	2.2	B1070-T45-B
Button Bit, Drop Center Ballistic Buttons, B10XX	76	3	3x11, 1x11	6x13	3	1	2.4	B1076-T45-B
Button Bit, Drop Center Ballistic Buttons, B11XX	89	3 1/2	3x11, 2x11	6x13	3	1	4.1	B1189-T45-B
Button Bit Ballistic Buttons, B12XX	76	3	4x11	8x11	2	-	2.6	B1276-T45-B
Button Bit Ballistic Buttons, B12XX	89	3 1/2	4x13	8x13	2	-	4.6	B1289-T45-B
Button Bit Ballistic Buttons, B13XX	76	3	5x11	8x12	2	1	2.6	B1376-T45-B-1
Button Bit, Drop Center Ballistic Buttons, B13XX	70	2 3/4	4x10, 1x10	8x11	4	-	2.2	B1370-T45-B
	76	3	4x11, 1x11	8x11	4	-	2.6	B1376-T45-B-2
	76	3	4x11, 1x11	8x12	4	-	2.6	B1376-T45-B-3
	89	3 1/2	4x11, 1x11	8x12	4	-	4.6	B1389-T45-B-1
	89	3 1/2	4x13, 1x13	8x13	4	-	4.6	B1389-T45-B-2
Button Bit Ballistic Buttons, B14XX	89	3 1/2	6x11	8x12	2	-	4.6	B1489-T45-B
