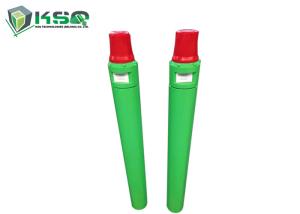

5 Inch QL50 For Rock Drilling Water Well Mining Down The Hole DTH Hammer

5 Inch QL50 For Rock Drilling Water Well Mining Down The Hole DTH Hammer

5 Inch QL50 For Rock Drilling Water Well Mining Down The Hole DTH Hammer

5 Inch QL50 For Rock Drilling Water Well Mining Down The Hole DTH Hammer Images

5 Inch QL50 For Rock Drilling Water Well Mining Down The Hole DTH Hammer

5" Down The Hole Hammer Drilling

5 Inch Dth Hammer Drilling

QL50 Dth Hammer Drilling

5 Inch QL50 For Rock Drilling Water Well Mining Down The Hole DTH Hammer Images

Home > Rock Drilling Tools >

Product Categories

KSQ Technologies (Beijing) Co. Ltd

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: 5 Inch QL50 For Rock Drilling Water Well Mining Down The Hole DTH Hammer
Brand: MIROC
Price: 1 USD

China 5 Inch QL50 For Rock Drilling Water Well Mining Down The Hole DTH Hammer wholesale

Brand Name : MIROC

Model Number : QL50

Certification : ISO

Place of Origin : China

MOQ : 1

Price : Negotiated

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 20000 pieces per month

Delivery Time : 10-15 days

Packaging Details : Wooden case

Product Name : Down-The-Hole Hammer

Model : QL50

Size : 5 inch

Material : High Manganese Steel

Processing Type : Forging

Usage : Coal Mining, Water Well Drilling, Construction

Hole Range : 135-172mm

Connection : API Reg 2-3/8"; API Reg 3-1/2"

Advantages : High Performance, High Quality, Factory Prices, Long lifetime, Best service

Air Consumption, m3/min : 12-22.3

OEM Service : YES

Contact Now

5 Inch QL50 For Rock Drilling Water Well Mining Down The Hole DTH Hammer

Selecting the right hammer

The optimum range of hole size for DTH drilling is 90 mm (3.5”) to 254 mm (10”). Smaller holes are generally drilled using tophammer drill rigs, and larger holes generally use rotary drill rigs.

Choosing the right hammer is largely depends on the type of application, hole size and type of rock formation. In the best way the size of the hammer should match the required hole dimension as closely as possible, leaving just enough space for cuttings to evacuate the hole efficiently.

KSQ DTH Hammers are purpose-matched for all rock types and applications where high performance and low total cost per drill meter are the main criteria.

Specifications of the DTH Hammer QL50

Length (without bit)	Weight (without bit)	External Diameter	Bit Shank	Hole Range	Connection Thread (top sub - drill pipe)	Working Pressure	Speed Recommended	Pull Force Recommneded
1160mm	73kg	125mm	COP54, QL50	135-152mm	API Reg 3-1/2”, API Reg 2-3/8"	10-25 Bar	30-60 rpm	9.5 kN

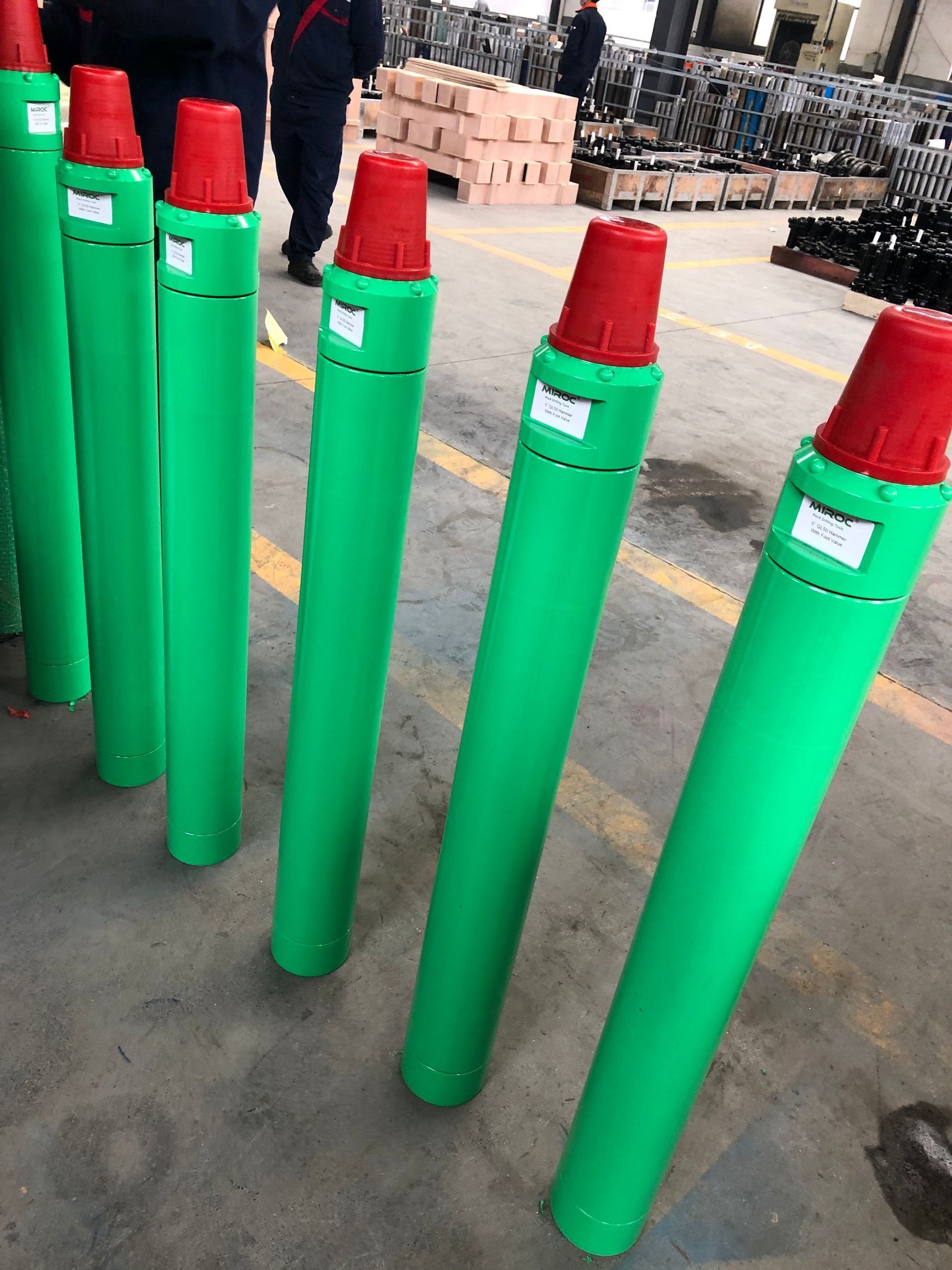

Photos:

5 Inch QL50 For Rock Drilling Water Well Mining Down The Hole DTH Hammer

ANY COLOR ACCORDING TO THE CUSTOMER'S REQUIREMENTS

About us:

Our products:

Drill Buttons Bits,

Drill Rods

DTH Hammers and Bits

Shank Adapters and a lot of other drilling tools.

5 Inch QL50 For Rock Drilling Water Well Mining Down The Hole DTH Hammer
