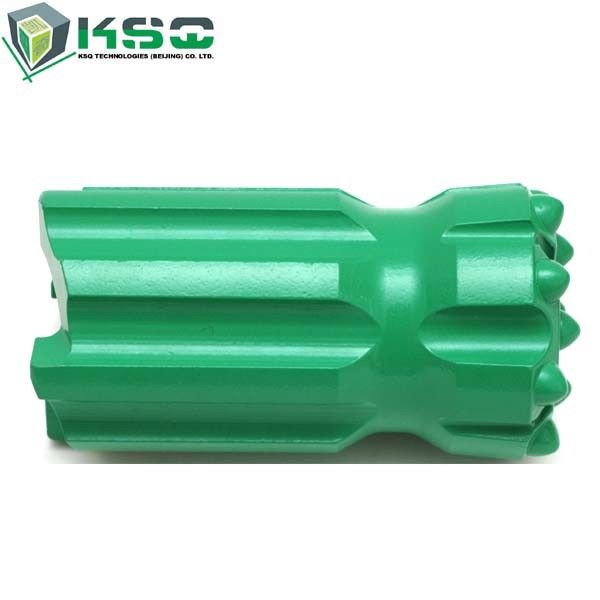

Green Mining Drill Bits R38 Spherical / Ballistic Buttons Dia 64 - 89mm

Name: Green Mining Drill Bits R38 Spherical Ballistic Buttons Dia 64 89mm
Brand: MIROC (KSQ)
Price: 1 USD

Brand Name : MIROC (KSQ)

Model Number : Retrac Drill Button Bit

Place of Origin : China

MOQ : Negotiated one

Price : Negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 20000 pcs per Month

Delivery Time : 15-25 days

Packaging Details : Carton or Wooden Box

Thread : R38

Application : Eliminating hole deviation, Mining operations, Drifting and Tunneling, Quarrying, Construction

Button Type : Spherical/Balistic

Color : Black, Green or Based on requestss

Material : Tungsten carbide and high strength alloy steel

Flushing Hole : Front

Diameter, mm : 64-89

Contact Now

R38 Retrac Drill Button Bits

Drill Bit	Diameter, mm	No x Buttons diameter			Flushing Holes		Weight, kg
Drill Bit	Diameter, mm	Front	Gauge	Angle	Front	Side	Weight, kg
Retrac Button Bit	Spherical/Ballistic Buttons
	64	3 x 10, 1 x 10	6 x 11	35	3	-	2.2
	70	4 x 10, 1 x 10	8 x 11	35	4	-	2.4
	76	4 x 11, 1 x 11	8 x 11	40	4	-	3.3
	76	4 x 11, 1 x 11	8 x 12	35	4	-	3.3
	89	5 x 12	8 x 12	35	2	-	4.8
	89	4 x 13, 1 x 13	8 x 13	35	4	-	4.8

Green Mining Drill Bits R38 Spherical / Ballistic Buttons Dia 64 - 89mm

This type of bit is well known for its wear resistance on soft to medium-hard rock formations. Featuring tungsten carbide inserts that is known to have strong configuration against carbide fracture. Recommended for eliminating hole deviation.
• Widely used drifting and tunneling
• Bit face design is ideal for soft to medium rock formations
• With Retrac Wings to help guide the bit in and out of the hole
• Effective in straight hole drilling

Green Mining Drill Bits R38 Spherical / Ballistic Buttons Dia 64 - 89mm
Spherical Button Characteristics:
1. Universal button
2. Good wear resistance
3. Best suited for hard ground
4. 27000-48000PSI(180 to 320Mpa)
5. Suited for abrasive to very abrasive drilling conditions
Ballistic Button Characteristics:
1. Fast Penetration
2. Best suited for soft rock
3. 10000-20000PSI(70 to 140Mpa)
4. Suited for non-abrasive drilling conditions

Green Mining Drill Bits R38 Spherical / Ballistic Buttons Dia 64 - 89mm

Application:

1. Underground mining
2. Tunneling
3. In granite and marble quarry
4. Gold Mine
5. Dimensional Stone Industry
6. Eliminating Hole Deviation

Package: Carton or Wooden Box; also we can follow customers' requirements.
Delivery time is around 15-25 days.

P.S. We can design and manufacture products according to customers’ requirements.

Company Information:

The MIROC® Rock Drilling Tools product line by KSQ Technologies (Beijing) Co.Ltd. is the result of years of advanced engineering, precision manufacturing, and dedication to the use of high-quality materials.

MIROC® Rock Drilling Tools are used by many drilling professionals related to mining, construction, tunneling, and quarrying projects around the globe.

KSQ Technologies (Beijing) Co. Ltd.
