0.6 M3/ 0.75 Yard Scraper Load Haul Dump Machine For Underground Mining Working
The RL-0.6 Load-Haul-Dump Machine is ideal for small size rock excavation operations. The RL-0.6 maintains the simple yet very robust design tenets of what a mining equipment should be - it has a small footprint and turning radius suitable for small envelope sizes, high proven reliability, and straight-forward mechanical components that are easy to maintain.
Product Technical Reference
| RL- 0.6 Load-Haul-Dump Machine Main Dimensions |
| Engine | Deutz Model: BF4L2011, Rate Power: 47.5KW |
| Rated Bucket Capacity | 0.6m³ |
| Brake System | Using Spring and Hydraulic break system. |
| Rated Load Capacity | 1.2t |
| Maximum Relieving Force | 35kN |
| Maximum Traction | 42kN |
| Driving Speed | 0-9km/h |
| Maximum Climbing Capacity | 20° |
| Maximum Discharge Height | 690mm |
| Minimum Discharge Distance | 800 mm |
| Minimum Turning Radius | 3350mm (Outboard of bucket) 1830mm (insideof back wheel) |
| Maximum Steering Angle | ±38° |
| Departure Angle | 16° |
| Weight of the Whole Machine | 4.5t |
| Size | Length (Bucket in haul position) 4850mm Width 1160mm Height of the Cab 1850mm |
Applications
Underground Mining
Hydropower Tunneling
Roadway/Railway Tunneling

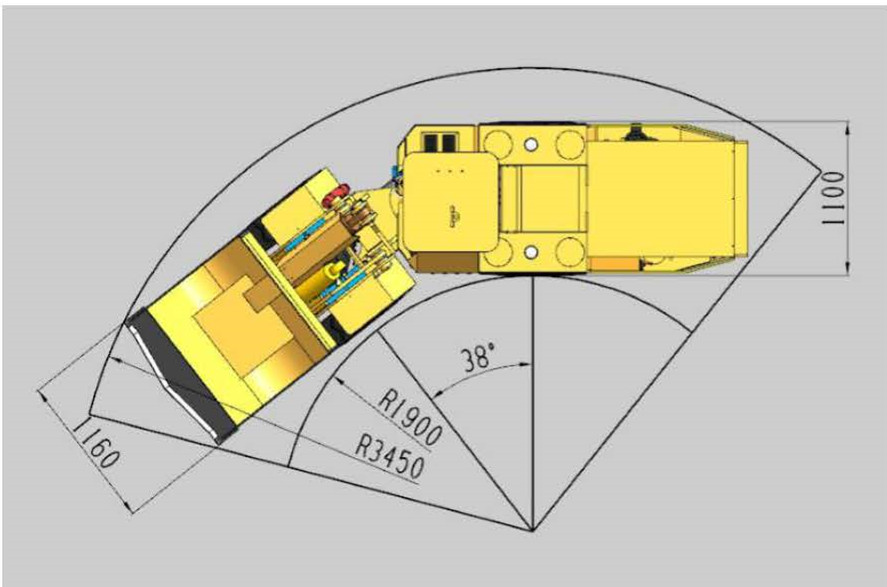

Drawing
